ESPACE: A home that directs daylight

This small two-storey, wood-frame house is tucked into a downtown residential neighbourhood in Shinagawa, Tokyo. The clients—a couple with minimalist taste and few superfluous possessions—wanted a private home on the compact lot, one that prioritised a spacious atmosphere over rooms that were physically large.

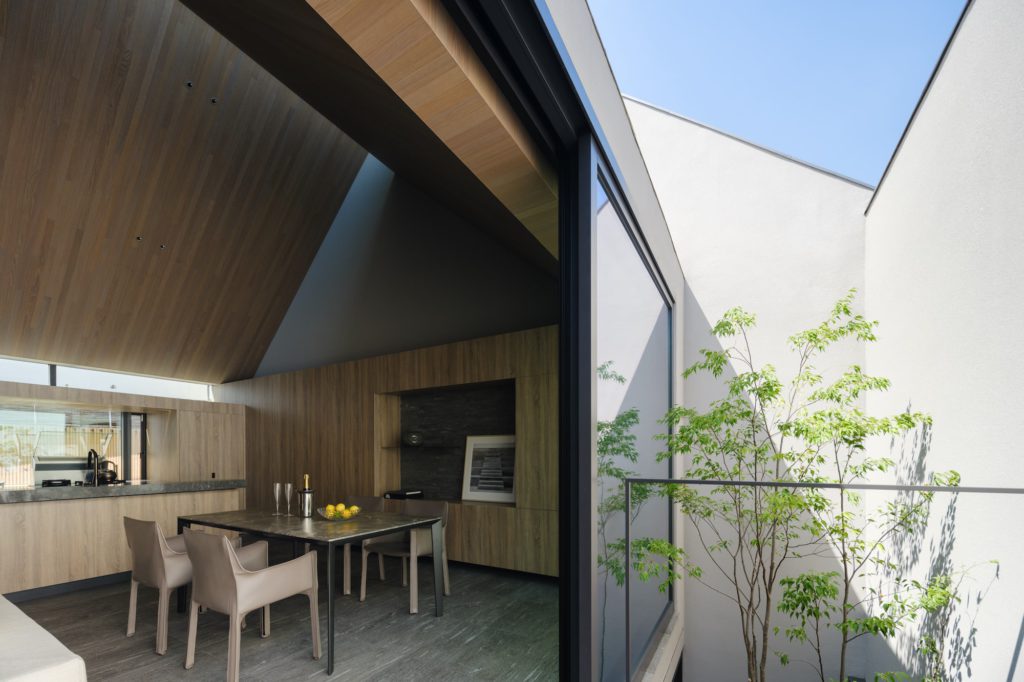

The lot abuts the north side of a narrow road and is hemmed in by closely packed houses. To maintain privacy in this environment, the street-facing façade has no windows; all-natural light comes from a courtyard and clerestory windows.

Maximising function

First, the architects used a rigid wood frame to make the most efficient use of the frontage. The gate-shaped frame avoids the need for load-bearing walls on the north side of the house, allowing for three windows to occupy the full width of that side, with a row of clerestory windows above.

Built-in wall storage takes advantage of the shape of the frame’s posts, making the space functional with little additional furniture needed.

Directing daylight

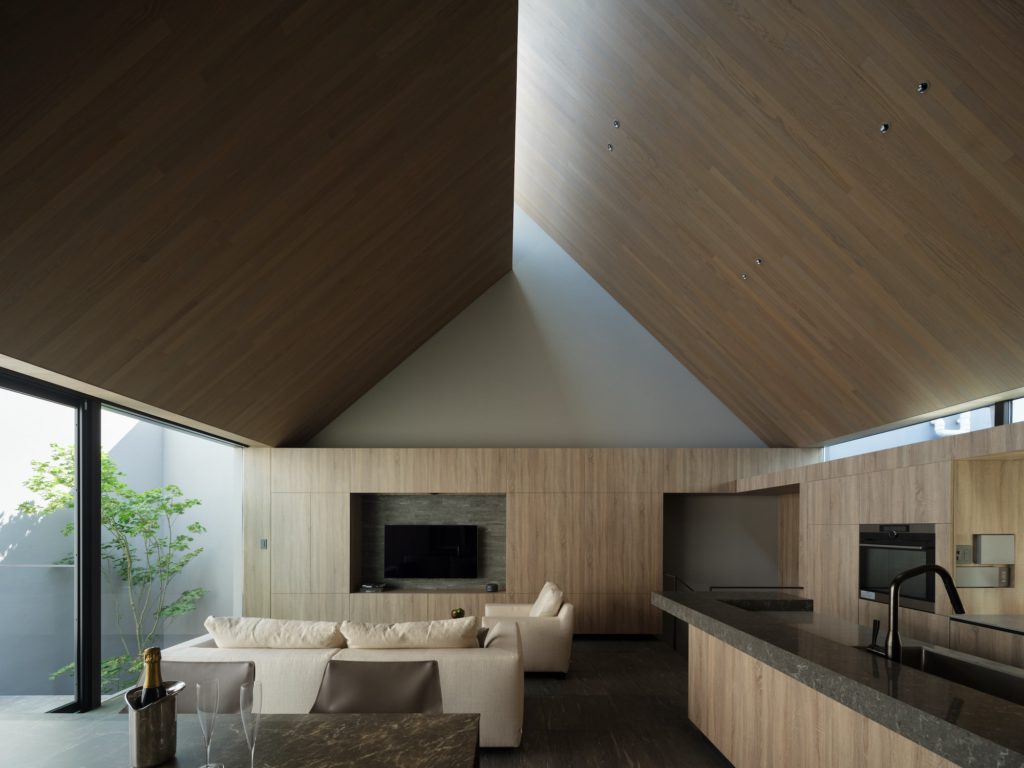

The most striking feature of the house is its provision of natural lighting. In the family room that occupies the whole of the second floor, three north-side windows allow soft, diffused lighting inside the home. Meanwhile, direct southern sunlight shines in along the sloped roof and is reflected off a wall into the room, brightening the area near the windows. This light filters through floor grates onto the first floor, where the bedroom and bathroom are located.

In addition, light pours through clerestory windows running the length of the north side, casting gradations on the sloped gable ceiling and ensuring that the kitchen at the back of the house receives adequate lighting.

By treating the entire building as a reflector, the architects created a separate ‘universe’ of diffused light that makes the home feel spacious, echoing the tranquil character of its residents.

PROJECT DATA

Project Name
ESPACE

Project Location
Shinagawa Ward, Tokyo, Japan

Status
Completed

Completion Date
July 2022

Site Area
77.68 square metres

Building Area
50.79 square metres

Total Floor Area
98.02 square metres

Building Height
2 storeys above ground

Architecture Firm
APOLLO Architects & Associates Co., Ltd.

Principal Architect
Satoshi Kurosaki

Structural Engineer
Masaki Structure (Kenta Masaki）

Facility Engineer
Naoki Matsumoto

Lighting Design
SIRIUS LIGHTING OFFICE Inc.

Construction
Kimura Ryozo Construction

Photography
Masao Nishikawa

Videography
Seiya Aoki/GRAFILM
