Matsubara Civic Library
September 24, 2021

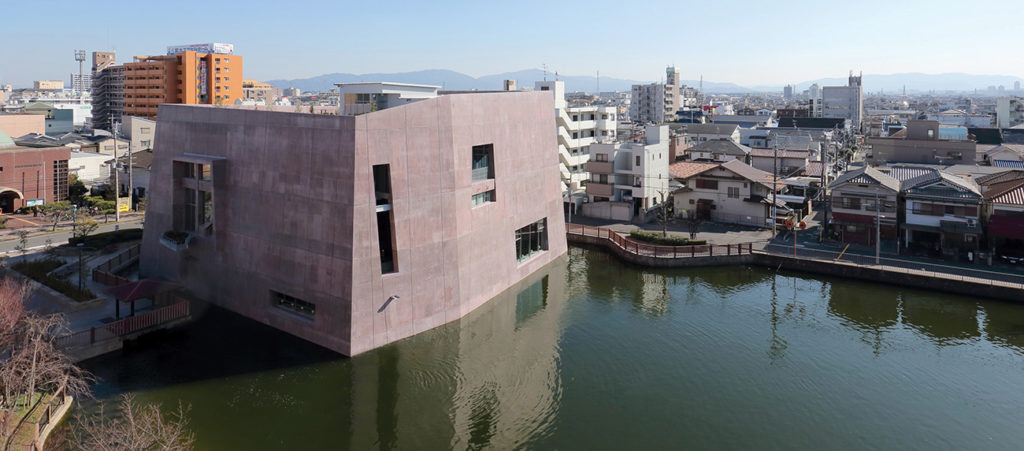

Instead of reclaiming the pond, the architects designed a structure that sits inside the water. Photo by Kai Nakamura
Dotted with reservoirs to secure water for agriculture, Matsubara City has a characteristic landscape that is also speckled with tombs built in ancient times in its residential areas. Although the tombs are huge man-made structures, they came to resemble natural landforms and have become a part of the physical landscape over the long passage of time.

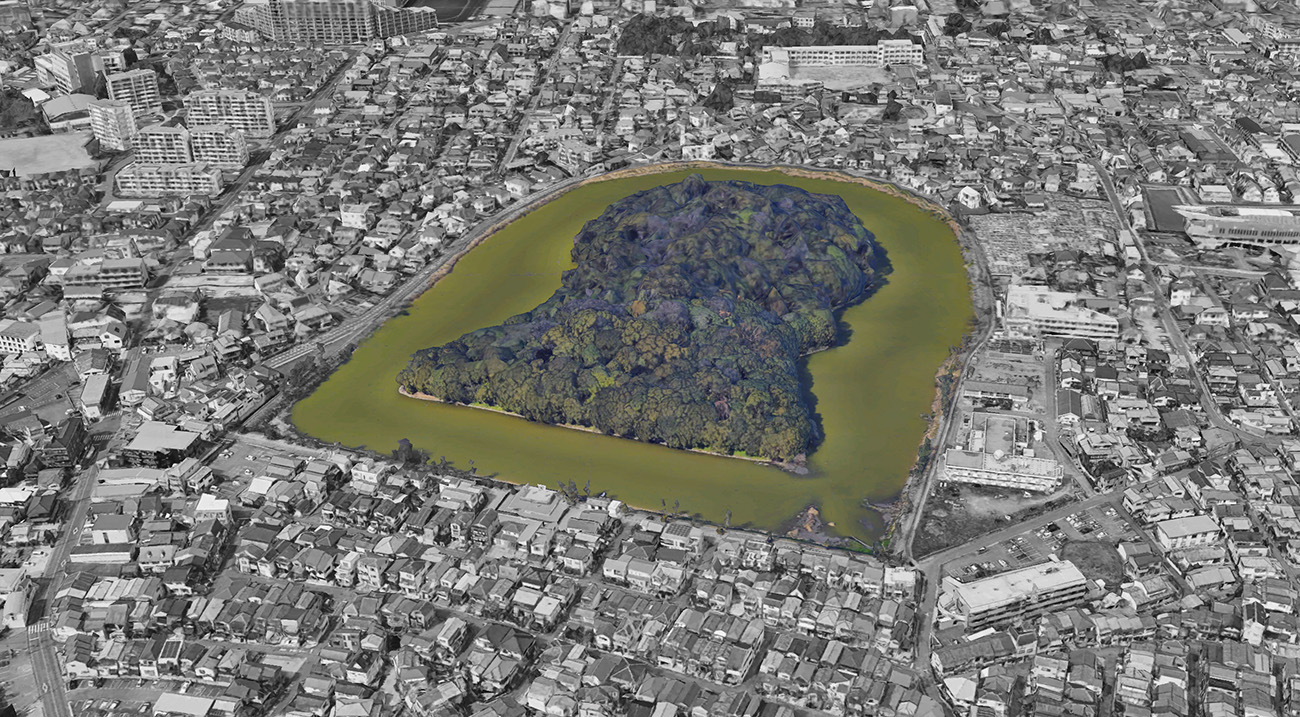

Photo showing Kofun (megalithic tombs or tumuli that are massive mounds of earth and stone) in Matsubara City
In recent years, there has been a tendency to reclaim the reservoirs and plan buildings on them. The site of this project sits at a corner of a reservoir. The brief was to replace an existing library on the same site. The original building was located adjacent to a reservoir pond in a park where many of the city’s cultural facilities are concentrated, and the client wanted to fill in the pond to build the new structure. Firms were asked to submit proposals addressing both its design and construction.
The principal architects of MARUº architecture told FuturArc, “In the proposal process, we decided not to reclaim the reservoir in order to preserve the landscape of the town … we proposed to build a building with thick walls directly inside the pond, like a civil engineering structure, instead of filling in the pond.”

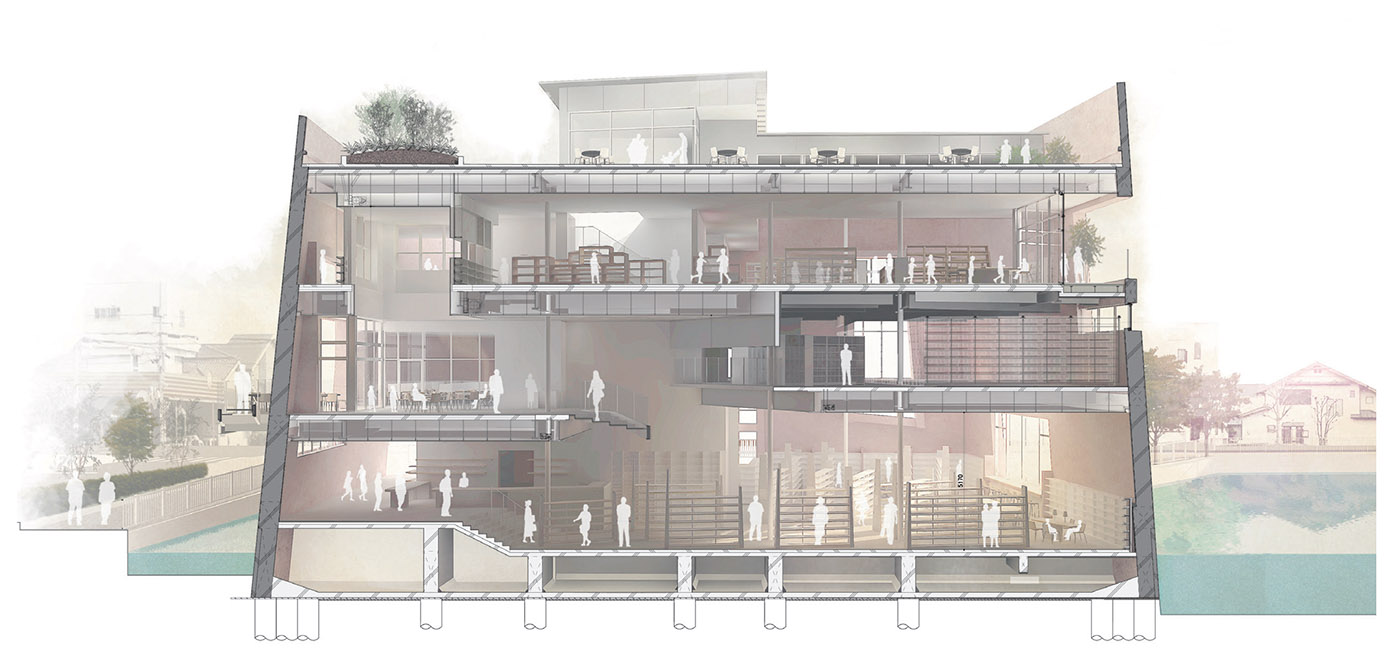

Building section
The firm’s winning proposal viewed the pond-side site as unique, and hence, suggested building the library directly out into the water. The scheme received high marks for both its creativity and its streamlining of the construction process and budget.
“By constructing the building directly into the reservoir, we have created an architectural space that takes advantage of the waterside environment. Externally, it creates a waterfront area and improves the water quality by circulating it around the perimeter of the building. Internally, we created a reading space where people can feel the fluctuation of the water surface of the pond.”
FREEDOM INSIDE
“Thanks to the sturdy outer walls that absorb all seismic load, we were free to implement a split-level design inside the building using a steel framework. The gradually staggered floors reveal glimpses of the adjacent floors, resulting in a unified space,” the architects explained.
The library has obtained an A rating from CASBEE (Comprehensive Assessment System for Built Environment Efficiency; the environmental performance standard in Japan). The energy consumption of the building is about 50 per cent less than that of a typical facility.
[This is an excerpt. Subscribe to the digital edition or hardcopy to read the complete article.]
PROJECT DATA
Project Name
Matsubara Civic Library
Location
Osaka, Japan
Completion Date
November 2019
Site Area
1,643.57 square metres
Gross Floor Area
2,987.33 square metres
Building Height
18.55 metres
Client/Owner
Matsubara City
Architecture Firm
MARUº architecture
Principal Architects
Yohei Takano; Sachiko Morita
Main Contractor
Konoike Construction
Mechanical & Electrical Engineer
Arup
Civil & Structural Engineer
Arup
Images/Photos
Kai Nakamura; Shinkenchiku-sha
