LTTD House

Online Exclusive Feature, Residential / 2020

LTTD House

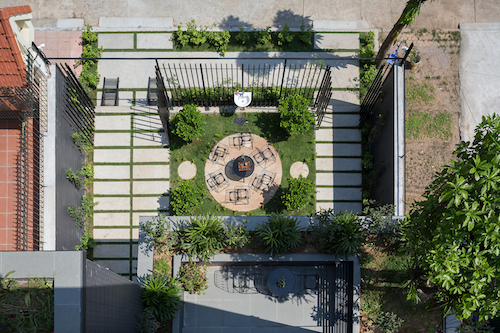

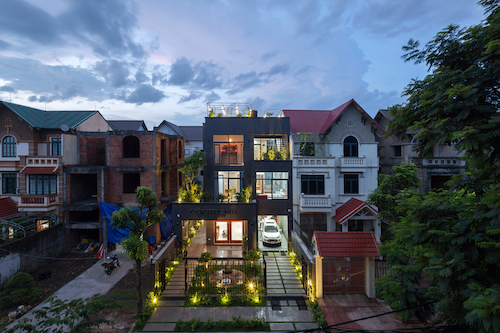

The exterior of LLTD House is in harmony with the surrounding landscape, it is designed to incorporate as much green spaces as possible.

LLTD House has a strong impact on the culture and lifestyle of the surrounding communities, seeking to help people realise the value of green and environmentally friendly living spaces, thereby changing the community’s perception of how to build a living space.

In the process of designing, the architects always focus on the use of local materials. With the participation of local builders, they try to minimise the negative impact on the environment during construction phase. The main materials used for the house are brick, steel and stone, which are purchased from nearby factories. Bricks are used to build walls and are bound together by cement mortar. Steel is used in the process of making concrete and stone is used to clad the exterior of the façade.

CHALLENGES

The biggest difficulty is to rearrange the premise and improve the appearance of the house. By keeping to their core values, the architects considered the investor’s needs and researched on local materials to solve these challenges. They then decide to give the façade a facelift to integrate the architecture with the surrounding landscape. Inside the house, the entire space is closely linked together to help expand the space and increase ventilation.

PERFORMANCE

A comfortable living space is achieved with natural ventilation and daylighting by installing large door panels as well as creating voids and terraces, thereby, saving 30 per cent of electrical usage. Breezes are expected indoors at a velocity of 0.1–0.3 metre per second, which will help lower the indoor temperature by 5–7 degrees compared to the outdoors.

Project Name LTTD House
Location Hoan Son Commune, Tien Du District, Bac Ninh, Vietnam
Completion Date 20 June 2019
Site Area 200 square metres
Gross Floor Area 300 square metres
Number of Rooms 5
Building Height 11 metres
Client/Owner Le Thi Duc
Architecture Firm Kiến Trúc NDT
Principal Architect Nguyen Dang Tuong
Main Contractor Nguyen Tai
Mechanical & Electrical Engineer Nguyen Van Tan
Civil & Structural Engineer Hoang Tuan Anh
Images/Photos Hoang Le
