The owner had collected the abandoned building materials from his friends: there were every kind of furniture such as tables, chairs, wardrobes, windows and lampshades. With a limited budget of USD10,000, the architect faced a challenge to refurbish this 50-year-old house—which was not in a good condition—into a culinary spot where the community can gather to cook and enjoy Vietnamese vegan dishes.

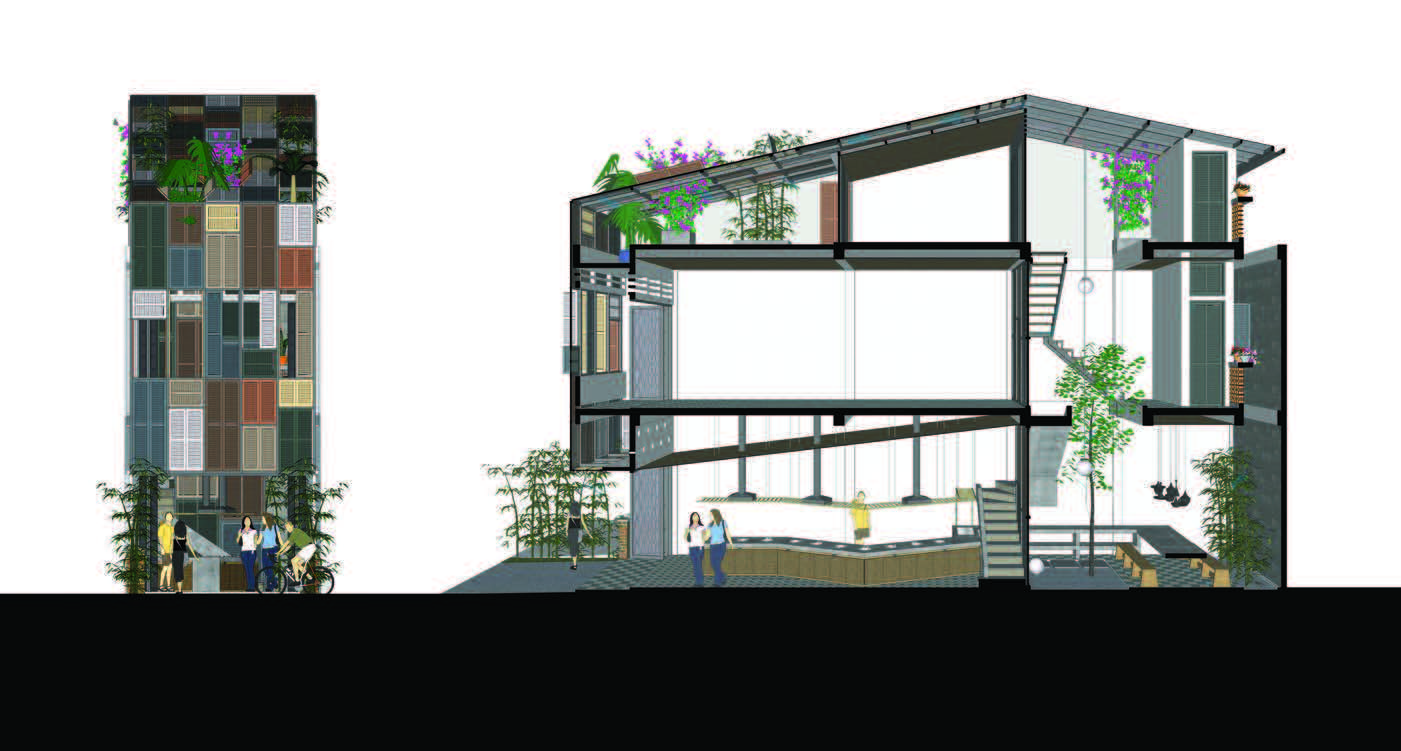

Standing amidst other traditional narrow ‘tube houses’ in Ho Chi Minh City, this community eatery called Vegan House cannot be missed. With a quaint exterior of recycled window shutters painted in bright colours, this building draws attention with its creative façade. Look deeper and one will come to realise that the architect has redeveloped most of this house by cleverly utilising adaptive reuse of abandoned materials for its cladding and interiors.

•

•

•

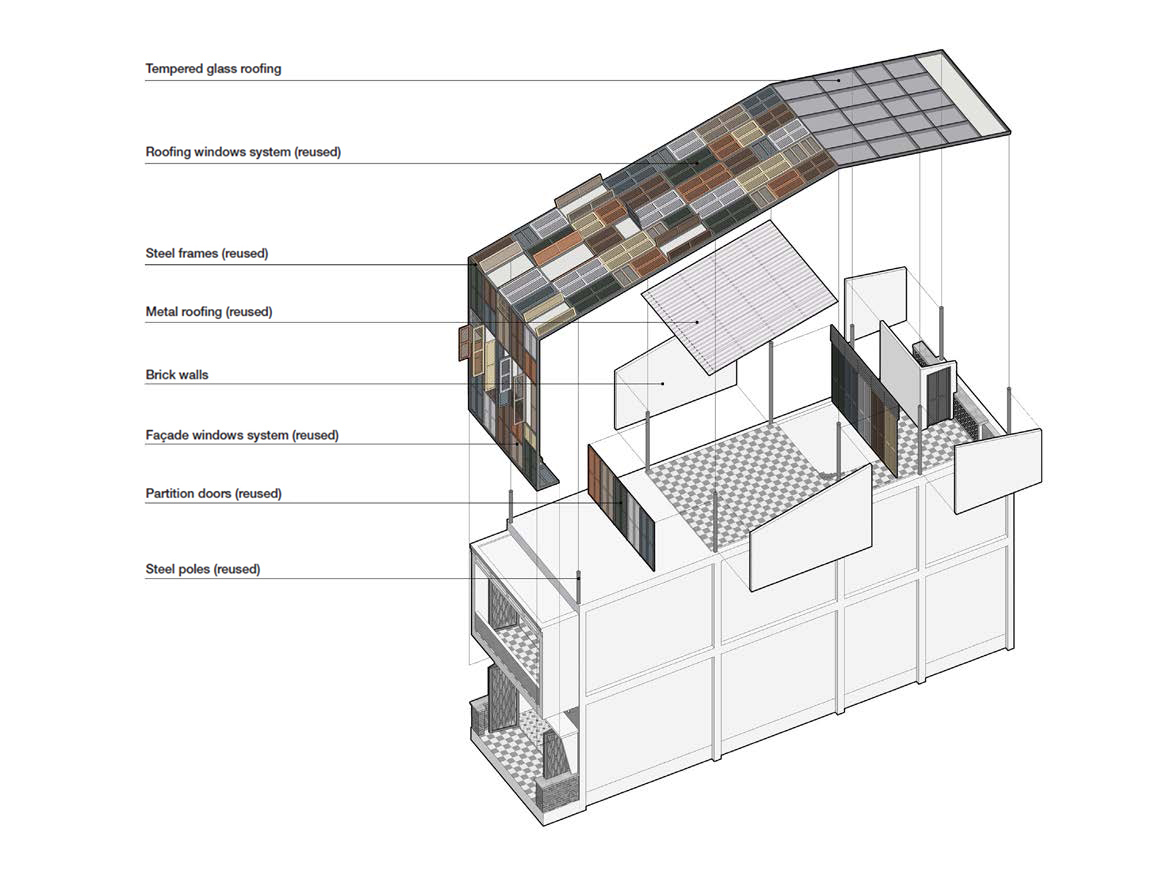

After being inspired by an old apartment across the current Vegan House, he had an idea to combine the discarded shutters. Sandwiched between two adjoining buildings, these jalousie windows—a common sight in the country—pay homage to the history of Vietnamese architecture, and were also installed as decorative elements as well as flexible partitions throughout the interior spaces of the house. They bring in natural lighting and provide cross ventilation in a hot climate. Some of the recycled louvres on the roof are kept open so that the trees beneath can grow upwards.

On the ground floor, a long curved kitchen cupboard is the centrepiece that runs through the house, where people mingle and cook in the common kitchen with a dining room and a small garden with a skylight. An old staircase leads to a bedroom on the first floor and a new steel staircase was built beside the atrium to the second floor, which used to be an unused roof. The recycled metal roof and steel frames provide a new shelter for another bedroom.

At the front, there is a garden installed with the same jalousie windows, which provide a view of the sky. A small atrium was created at the end for cross ventilation that also brings in natural light for the two toilets beneath. The materials of the walls and floors have been preserved; unrefined cement surfaces, shutters and bamboo wattle on the ceiling create a modern yet aged effect. “[By] rearranging old things in a new way, both the old things and the new ones can exist together and support each other,” the architect commented.

---

PROJECT DATA

Project Name
Vegan House

Location
Dien Bien Phu Street, District 3, Ho Chi Minh City, Vietnam

Completion Date
February 2015

Site Area
60 square metres

Gross Floor Area
160 square metres

Number of Rooms
4

Building Height
11 metres

Client/Owner
Nguyen Tam

Architecture Firm
Block Architects

Principal Architect
Dang Duc Hoa

Main Contractor
Block Constructions

Mechanical & Electrical Engineer
My Tien

Civil & Structural Engineer
Khoa Nguyen

Images/Photos
Quang Tran; Block Architects
